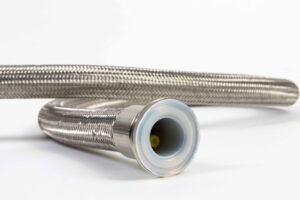

Versilon WCS Stainless Braided PTFE Convoluted Teflon Hose

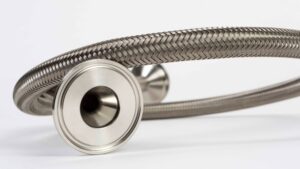

WCS is an amazingly flexible Teflon hose constructed from a flexible helically convoluted Teflon inner tube then braided with high tensile stainless steel braid. There are four versions of this hose: WCS with a white FDA PTFE tube, BCS with a black static dissipating PTFE tube and then both are available with a silicone sleeve over the stainless steel braid: WCSS and BCSS. WCS/BCS can be cleaned with steam, caustics, and solvents.
Chemical transfer, CIP and SIP applications, auto clave, transfer lines, process lines.
Temperature Range: -65⁰F to 450⁰F continuous service
Construction: Inner tube: PTFE helically convoluted
Cover: high tensile stainless steel braid
Fittings: All stainless steel and flare thru offerings including sanitary clamp, bevel and I-Line style, flanges, cam locks, male pipe thread, female JIC swivels.
PTFE inner tube:
• Superior flexibility and vacuum resistance
• Convoluted inner tube is low profile and
helically formed to promote drainage
• Low risk of flavor contamination
• Does not absorb color or odor
• Non-stick, non-contaminating
• Easy to clean (SIP, CIP, autoclavable)
Convoluted PTFE Hose
Convoluted Hose Series: TWOB/TBOB/TWOBHV/TBOBHV, TWOY/TBOY, TWOK/TBOK, TWOP/TBOP, WCS/BCS, WCSS, WCP/BCP
Smooth-Bore PTFE Hose

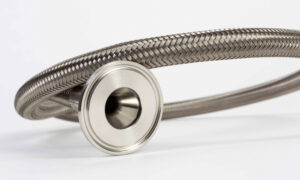

Smooth Tube Hose Series and Assemblies: FlexPro®, PharmaSmooth®, Swiv-L-Flex®, TLCTCO, CTLCT, TLCT/WTLCT/SFTL, WTLCTPFA, W.S.I.B., TS/TB, TSS, TH, MTL, MTLSJ

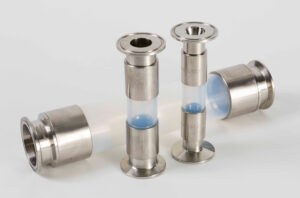

Site Flow Indicators, Transfer and Heated Hose
Heavy Wall Chemfluor® Natural FEP Sight Flow Indicators, Dip Tubes, Liquid Level Indicators, Inspection Ports, Flare-Thru 150# Flanged Site Flow Indicators, Caged Chemfluor® Site Gauge, Chlorine Transfer Hose Assemblies, Electrically Heated Hose
Fittings and Adapters
Flare-Thru Fittings, PermaSeal® Crimp Style Fittings, and Pipe Interface Adapters

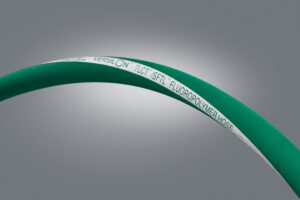

Use of Versilon™ TLCTCO Hose in filling machine applications:
A major cosmetic manufacturer was experiencing repeated failures of supply hoses used to transfer lotion to containers being filled in a rotary filling machine operation. The plastic reinforced tubing being used along with maintenance shop assembly produced hose “assemblies” constantly leaked at the fitting to hose connection due to “worm gear clamp” assembly practices. The use of Versilon™ TLCTCO hose assemblies with crimped sanitary end connections eliminated leaks, reduced the stress on the filling head mechanism and allowed CIP procedures to be implemented reducing set up time for product line change over. TLCTCO’s bend radius is approximately 20-25% less than conventional rubber covered fluoropolymer line hose assemblies with force to bend values featuring the same 20-25% reduction. This product feature may allow an application to use a short hose which is especially useful in restricted space applications commonly encountered in filling machine applications.
Sani-Tech® Ultra-HP High Purity Hose
Sani-Tech® Ultra-HP hose is constructed with multiple layers of reinforced Sani-Tech® Ultra platinum-cured silicone, 316L stainless steel helical wire reinforcement and a PharmaFluor® FEP liner. The FEP liner is fully bonded to the silicone hose utilizing patented bonding technology, providing a high purity fluid path. The smooth inner bore surface ensures both optimal flow and ease of cleaning and sanitization. Light weight and exceptional flexibility make this hose extremely user-friendly.
