Fristam Sanitary Pumps
Discover Tri-Canada’s selection of Fristam pumps, designed for exceptional hygiene, efficiency, and performance in sanitary processing environments.
Trusted Sanitary Pumping Solutions from Fristam
Tri-Canada proudly supplies Fristam sanitary pumps—engineered for exceptional performance, cleanability, and long-term reliability in hygienic processing environments. From gentle product handling to high-efficiency mixing, Fristam’s centrifugal, positive displacement, and powder mixing pumps are built to meet the highest standards of sanitary design.
With CIP/SIP-ready construction, low shear capabilities, and heavy-duty stainless steel, Fristam pumps help streamline production and protect product integrity at every stage of the process.
Fristam Centrifugal Pumps:
Engineered for Precision. Trusted for Sanitation.
Fristam centrifugal pumps provide gentle, consistent product handling in a wide range of sanitary applications. Fristam’s proven design utilizes precision-crafted components and tight internal tolerances for efficient operation, while minimizing vibration and noise. Their 316L stainless steel construction, electropolished internal surfaces, and sanitary seals ensure reliable, long-lasting performance in food, beverage, dairy, and pharmaceutical environments. All Fristam centrifugal pumps are CIP/SIP capable and meet 3-A standards for hygienic processing.

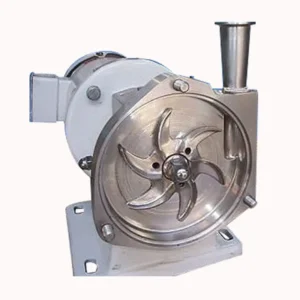

Fristam FP Series – Heavy-Duty, Pedestal-Mounted Centrifugal Pump
- Pedestal-mounted, heavy-duty design for demanding process applications
- Cast and forged construction with precision impellers and a self-aligning shaft
- Quiet, efficient operation and long service life
- CIP-ready, with gentle handling for dairy, beverage, food, personal care and biopharma, including WFI
FPX Series
The Compact Industry Standard
- The industry standard for general-purpose hygienic liquid transfer
- Same proven pump head as the FP Series, without the pedestal, for cost-effective performance
- Ideal for product transfer, CIP supply and feeding equipment
- Single mechanical seal; optimized impeller for gentle product handling and long seal life
- Pharmaceutical options: USP Class VI elastomers, electropolishing and surface finishes to 15 Ra

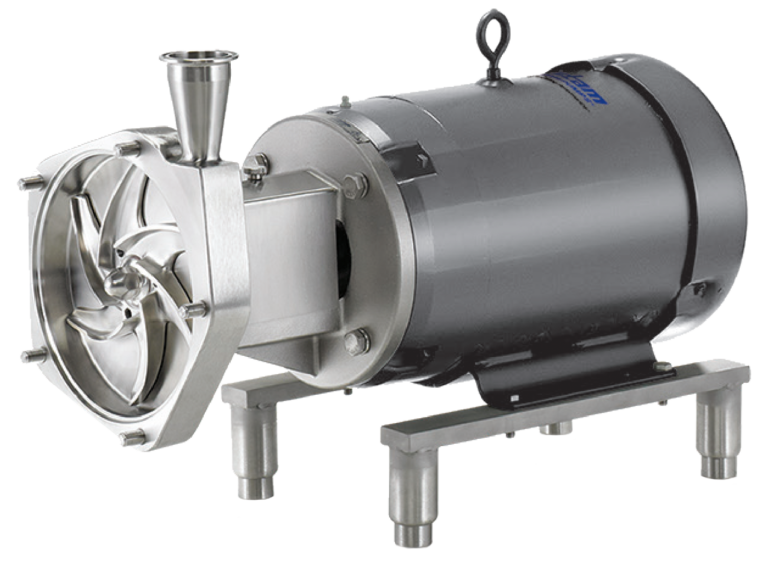

FPR Series
Front-Loading Seal for Easy Maintenance
- Front-loading seal can be serviced in place, without pulling the pump out of the line
- Robust stainless-steel construction for food, beverage, dairy, pharmaceutical and personal care
- Ideal for CIP return, product transfer and general hygienic applications
- Electropolished and passivated finishes to Ra ≤ 15 µin available
Fristam Positive Displacement Pumps:
Powerful. Precise. Built for Demanding Applications.
Fristam’s positive displacement pumps deliver exceptional performance in high-viscosity and shear-sensitive applications. Engineered with heavy-duty stainless steel and precision internal geometry, these pumps ensure smooth, consistent flow while meeting the highest sanitary standards for food, beverage, and pharmaceutical processes.

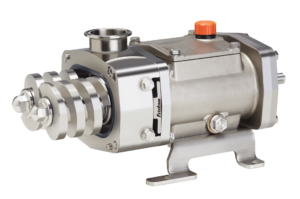

Fristam FDS Series – Twin-Screw Versatility with Sanitary Design
- Twin-screw positive displacement pump for both viscous and low-viscosity fluids
- Pumps process and CIP fluids with a single pump, with no additional bypass loop
- Handles products with particulates and shear-sensitive products gently
- Pulse-free, reversible flow; CIP- and SIP-capable

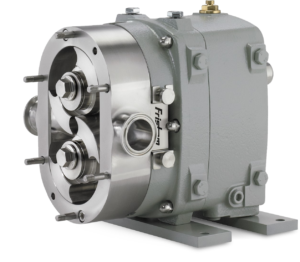

Fristam FKL Series – Circumferential Piston Pump for Viscous Fluids
- Sanitary circumferential piston (positive displacement) pump for high-viscosity fluids and products with particulates
- True CIP capability, rated to 500 PSI
- Consistent flow with gentle handling of soft solids
- Also available as the FKL COP for clean-out-of-place applications

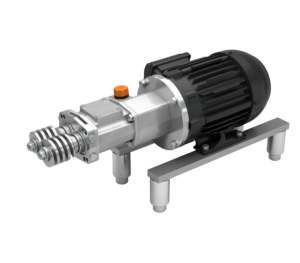

NEW: FDS Nano Twin Screw Pump
- The world’s smallest twin screw pump, built for low-flow transfer and precise dosing
- Gentle, low-shear handling of delicate and shear-sensitive products
- Handles viscosities up to 1 million cP and up to 70% entrained air
- Pumps both process and CIP fluids, at speeds up to 4,000 RPM
Fristam Powder Mixers
Efficient. Reliable. Designed for Difficult Mix-In Tasks.
Fristam powder mixers are built to blend dry ingredients into liquids quickly, consistently, and without clumping. With high-shear mixing capabilities and hygienic construction, these systems are trusted in demanding food, beverage, and pharmaceutical environments where precision and cleanability are critical
Fristam FSPE Series – Powder Induction System
Draws powders directly into liquid streams without dust or clumping
Produces smooth, homogenous blends in seconds
Eliminates the need for batch tanks or mechanical agitators
CIP/SIP ready and built to 3-A standards
Ideal for protein, sugar, gums, stabilizers, and dairy solids
Mixing & Blending:
Fristam PM Powder Mixers:
A hygienic, universal mixing system for blending, dissolving, recirculating and homogenizing ingredients. Its rotor-stator mixing principle incorporates powders quickly and distributes them evenly for consistent product quality. The PM-D version handles high-viscosity products.
Fristam FS Shear Blenders:
An inline high-shear rotor-stator mixer that disperses, emulsifies, dissolves and homogenizes powders into liquids, and gives pre-mixed products a smoother mouthfeel. It can be retrofitted into existing process lines.
Fristam FSI Shear Pump:
For applications requiring both pumping and mixing, Fristam’s FSI has an integrated impeller that provides high flow rates while still mixing your product.
NEW: Fristam PL Powder Dissolver:
A hygienic inline dissolving system built around a Fristam FS shear blender on a mobile frame with an integrated powder hopper. Delivers rapid wetting and lump-free dissolution, with powder intake up to 200 lb per minute and full CIP capability.
NEW: Fristam FCM Colloid Mixer:
An economical, time-saving alternative to homogenizers. The FCM’s rotor-stator design reduces particles to sub-micron size for stable emulsions, suspensions and dispersions, with on-the-fly gap adjustment and full CIP capability.
Explore Options & Tools
Fristam Serial Number Lookup
Unable to locate your pump’s serial number?
Finding the right serial number is quick and easy with the guide below. Simply identify your pump type, locate the serial number, and use Fristam’s online lookup tool to find the parts you need. If you’re still having trouble, the full guide is available for download to help you through the process.
Fristam Pump Flange Support and Leg Kit Options
Fristam Pump Flange Support & Leg Kit Options
For businesses reviewing centrifugal pump quotations, understanding the available flange support and leg kit configurations is crucial for ensuring proper installation and reliable pump performance. This graphic clearly illustrates these mounting options, helping you make more informed decisions about pump setup and functionality.
High Efficiency
The FL2 features a low-slip bi-wing rotor that maintains efficiency even on low viscosity products or when trimmed for high temperature.
Simple Maintenance
Simple gear timing reduces maintenance and minimizes the potential for rotor-to-rotor contact. It’s easy to assemble with pinless seals and universal mounting.
Complete Cleanability
The entire wet end of the pump is made from 316L low-ferrite stainless steel. 3-A approved, the internal design allows for complete cleanability with no product entrapment areas.
• CIP’able
• SIP’able
FL2 Series Specification
• 9 Models
• Max. Discharge Pressure 170 psi
(11.7 bar)
• Max. Flow Rate 380 gpm (86 m3/hr)
• Max. Viscosity 100,000 cps
• Performance Curves Page 23
